"Pureflow Filtration: Maximizing Efficiency, Minimizing Contamination"

**PRINCIPLES OF OPERATION:**

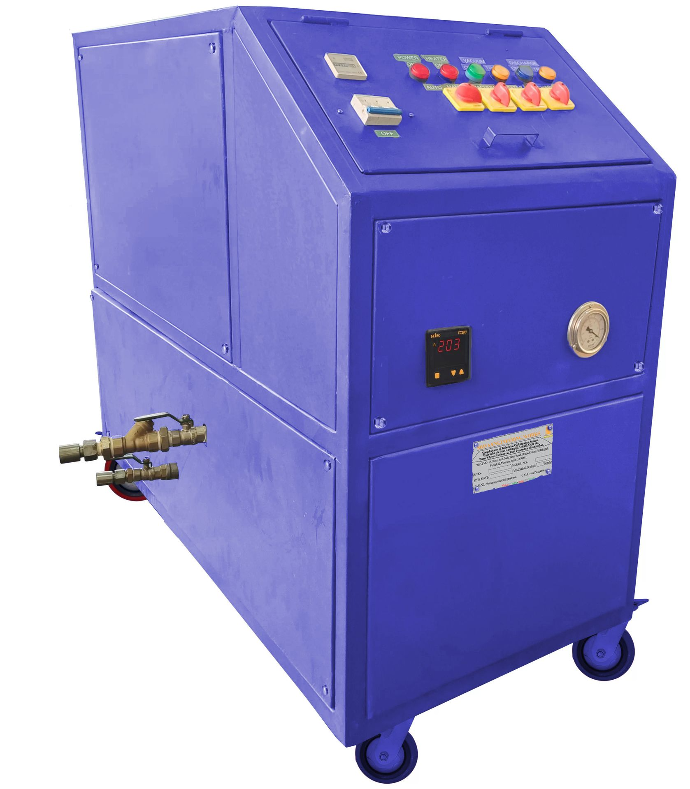

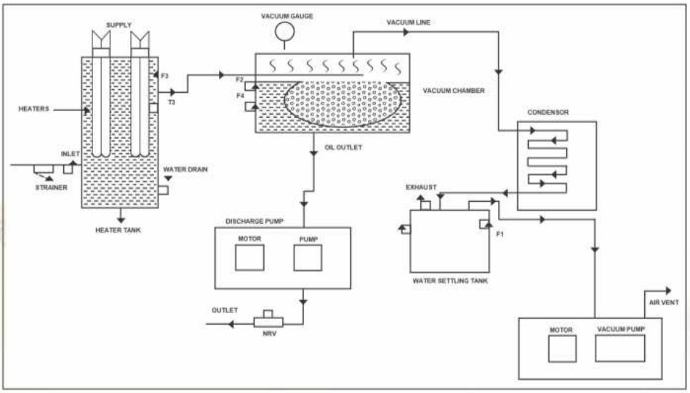

The Pureflow Low Vacuum Dehydration machine draws in contaminated oil using a 600 millibar vacuum. The oil is heated to an optimal 66°C-70°C by a low-watt density heater. It then moves into a distillation column where vacuum and dispersal elements increase its surface area, turning water into vapor. The vapor is extracted by the vacuum pump via the condenser. Dehydrated oil collects at the column's base and is pumped out by a heavy-duty lube oil pump, which then filters out particulates. Clean oil then flows back to the reservoir and system.

**Effects of Water Contamination:**

Water is a prevalent and harmful contaminant in fluid systems, leading to:

- Corrosion of metal.

- Abrasive wear in hydraulic parts.

- Fluid degradation and reduced lubrication efficiency.

**Advantages of the Pureflow LVDH:**

- Simple operation for continuous and effective moisture removal from oil.

- Preserves oil quality, ensuring it is dry and dehydrated.

- Fast heat transfer reduces residence time.

- Lower pressure drop.

- Suitable for processing thermally sensitive, high-viscosity, and high-solid materials.

- High evaporation efficiency (> 95%).

- Easy to clean and maintain.
